Eccentric Screw Drum Pumps

* Features

  • This is a single-axle eccentric screw pump, consisting of a rotor and a stator, that enables fast transfer
  • Preventing motor damage by installing of dual safety device in the motor
  • Easy operation and simple part replacement
  • The material of motor casing with strong chemical resistance and shock resistance
  • Transfer various viscous materials and chemicals
  • Transfer flammable liquid by using ex. proof motor or air motor

* Applications

  • To transfer or split high-viscosity organic and inorganic chemicals from drum or container
  • To transfer or split high-viscosity liquids in plating plant and chemical plant
  • To transfer or split liquids in chemical warehouse
  • To transfer or split high-viscosity liquids safely in research laboratory and hospital
  • To transfer or split high-viscosity liquids in cosmetic and food industry
  • To transfer or split lubricants and high-viscosity liquids in various manufacturing plants
  • To transfer flammable materials in paint and resin factory

* Motors

Electric Motor (800W)

  • Dual prevention of motor from damage caused by overload through installing Thermal Protection device(TP) and over-current breaker internally
  • Dual wall type motor housing prevents damage from external impacts
  • By installing low voltage release device(Optional), preventing motor damage caused by low voltage
  • 5m long power cable is equipped with plug as standard item


Electric Motor(420~430W)

  • Incorporated thermal load protection (TP) and overcurrent circuit breaker provides double protection of motor damage due to overload
  • Incorporated Low Voltage Release (optional item) protects potential motor damage due to use of low voltage
  • Employed internal ventilated cooling system of air flow downward type prevents outside harmful gas from coming in motor
  • Standard featured with double insulation and 5m power cable including plug


Air Motor

  • Simple structure.
  • Can be used for dangerous area of explosion. (EX Ⅱ 2G)
  • More light than electric motor.
  • Easy speed control by supply pressure.
  • Suction Dia. : Rc1/4, Discharge dia. : Rc1/2


Ex. Proof Motor

  • Can be used for dangerous area of explosion. (Ex de ⅡC T6)
  • Dual prevention of motor from damage caused by overload through installing Themal Protection device(TP) and over-current breaker internally.
  • By installing low voltage release device(Optional), preventing motor damage caused by low voltage.
  • Dual wall type motor housing prevents damages from external impact.
  • 5m long power cable is equipped with plug as standard item.

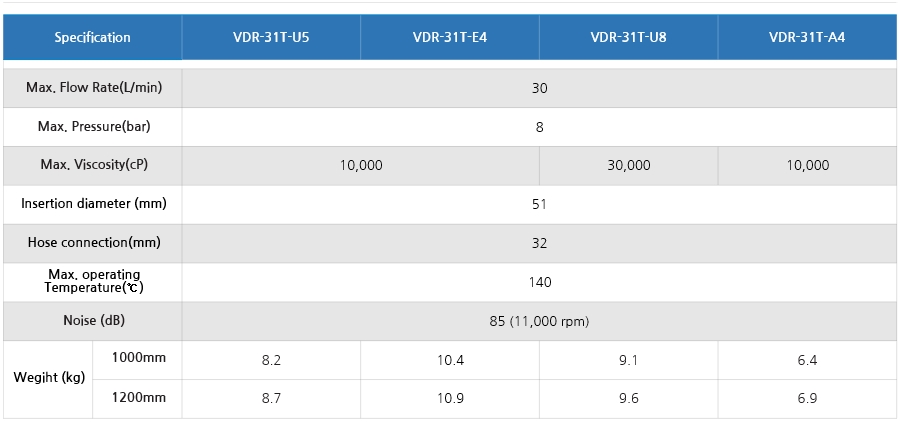

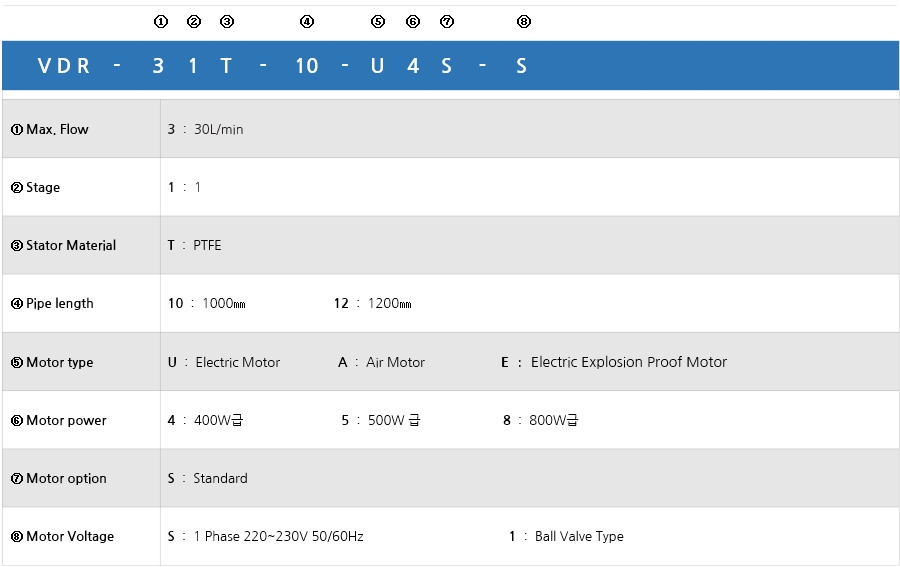

* Product Image
