Digital pH/ORP Controller

* Features

  • High Legibility by 3inch Segment Display
  • Easy to manipulate
  • Convenient Calibration
  • 2Channel Analog Output
  • Data backup in the EEPROM
  • Self-Diagnostic function
  • Temperature compensation of measured pH value (Option)

* Applications

  • pH/ORP Controller

* Introduction

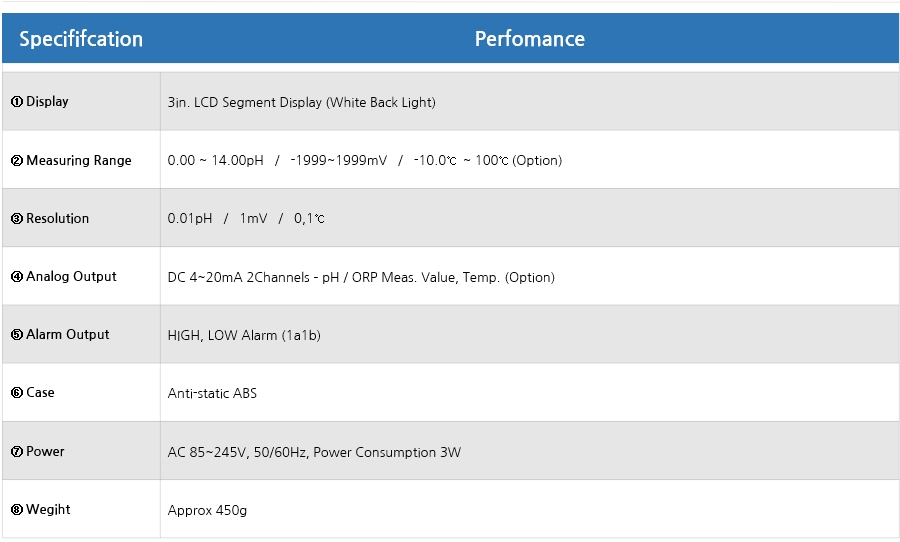

SPECIFICATIONS PERFORMANCE
Display 3in. LCD Segment Display (White Back Light)
Measuring Range 0.00~14.00pH / -1999~1999mV
-10.0 ~ 100°c(Option)
Resolution 0.01pH / 1mV / 0.1°c
Analog Output DC 4~20mA 2Channels
pH or ORP Meas. Value, Temp. (Option)
Alarm Output HIGH, LOW Alarm (1a1b)
Case Anti-static ABS
Dimension 96mm(W) * 96mm(H) * 115mm(D)
Power AC85~245V, 50/60Hz, Power Consumption 3W
Weight Approx. 400g

* Product Image
